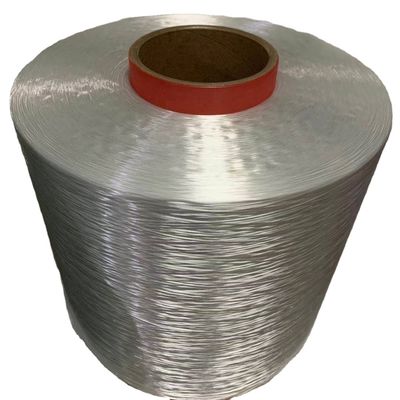

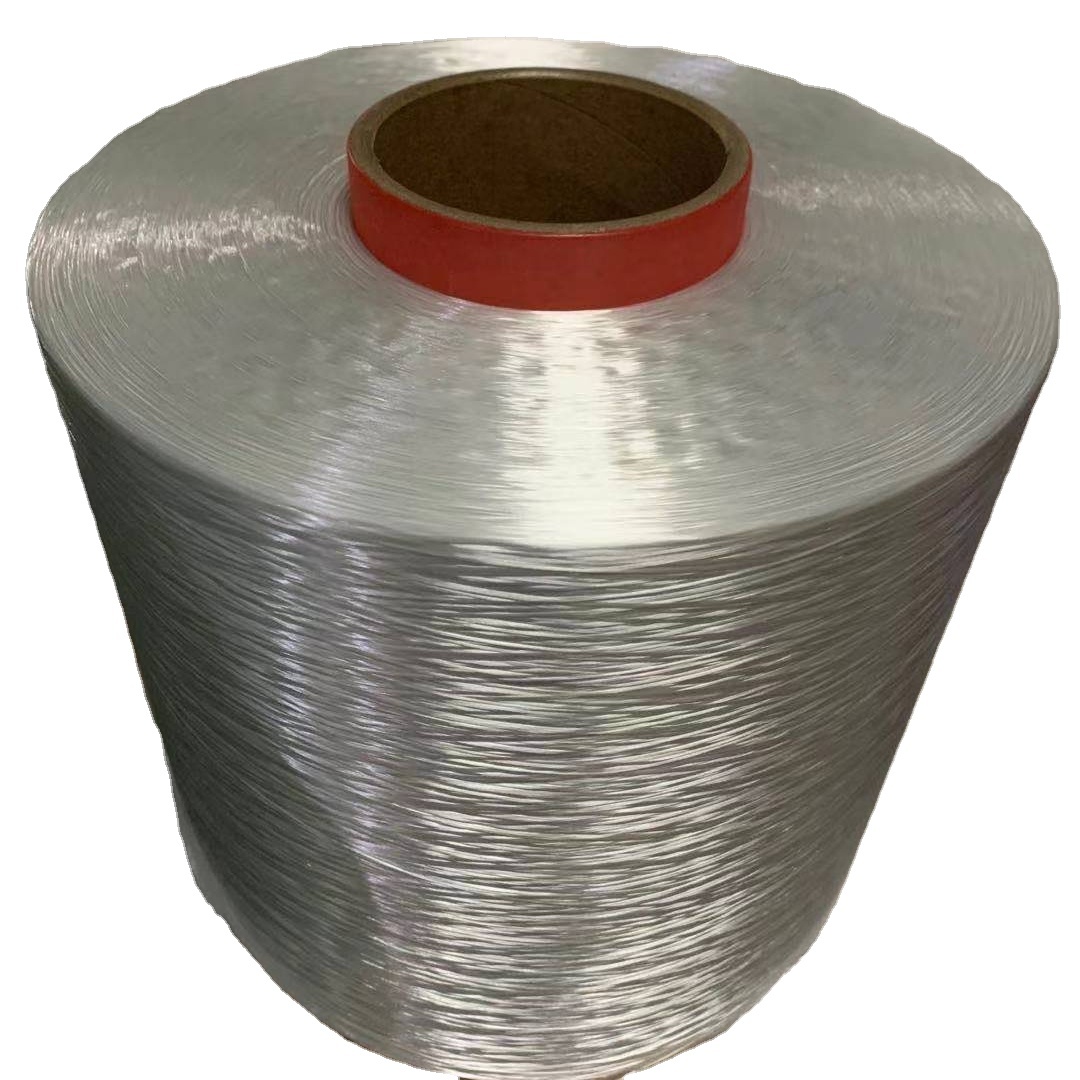

High Tenacity Polyester Binder Yarn 1000D 1110 Tex As Binder for Optical Cables
Product Description
POLYESTER BINDER YARN
Polyester yarns are manufactured from first quality materials. Used mainly as binder for optical cables, they have very high tenacity and minimal shrinkage. We deliver the yarn wound on cardboard tube, under high pressure to allow the yarn to be used with high-speed servers. Each type has standard or low shrinkage to choose. Polyester yarn is non-twisted.
It can be also delivered under DUAL form with 2 independent yarns wound in the same tube, doubling your machine capacity.
We develop and produce binder yarns to meet the development of fiber optic cable design. Today's small and compact cables offer little or no margin for material shrinkage. Therefore, we have introduced an ultra-low shrinkage polyester binder yarn. The range of binder yarns also includes a swellable WB binder yarn.
Available Colors
White, Red, Yellow, Black
Specification
Standard & Low shrinkage
| Weight (Denier) |
Linear Density (tex) |
Length Per Kilogram (m/kg) |
Breaking Strength (N) |
Elongation (%) |
Heat Shrinkage (177°C, 10min, pre-tension 0.05cN/dtex) (%) |
| 1000 |
1110 |
9000 |
≥65 |
≥13 (Standard yarn), ≥22(Low shrinkage yarn) |
4-6 (Standard Yarn), 0.5-1.5 (Low shrinkage yarn) |
| 1500 |
1660 |
6000 |
≥95 |
|
|
| 2000 |
2220 |
4500 |
≥125 |
|
|
| 3000 |
3330 |
3000 |
≥185 |
|
|
Dual Form
| Weight (Denier) |
Linear Density (tex) |
Length Per Kilogram (m/kg) |
Breaking Strength (N) |
Elongation (%) |
Heat Shrinkage (180°C, 10min) (%) |
| 2×1000 |
2x1110 |
9000 |
≥65 |
≥13 (Standard yarn), ≥22(Low shrinkage yarn) |
4-6 (Standard Yarn), 0.5-1.5 (Low shrinkage yarn) |
| 2x1500 |
2x1670 |
6000 |
≥95 |
|
|
| 2x2000 |
2x2220 |
4500 |
≥125 |
|
|
Values shown are for references only. For more accurate figures, please ask for technical data sheets.

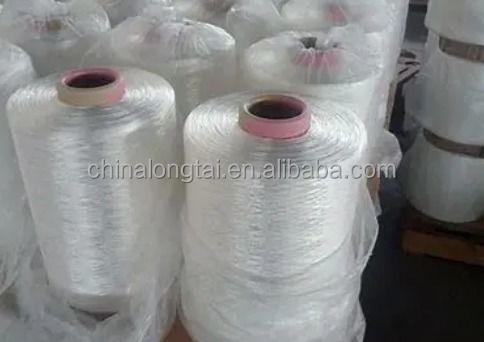

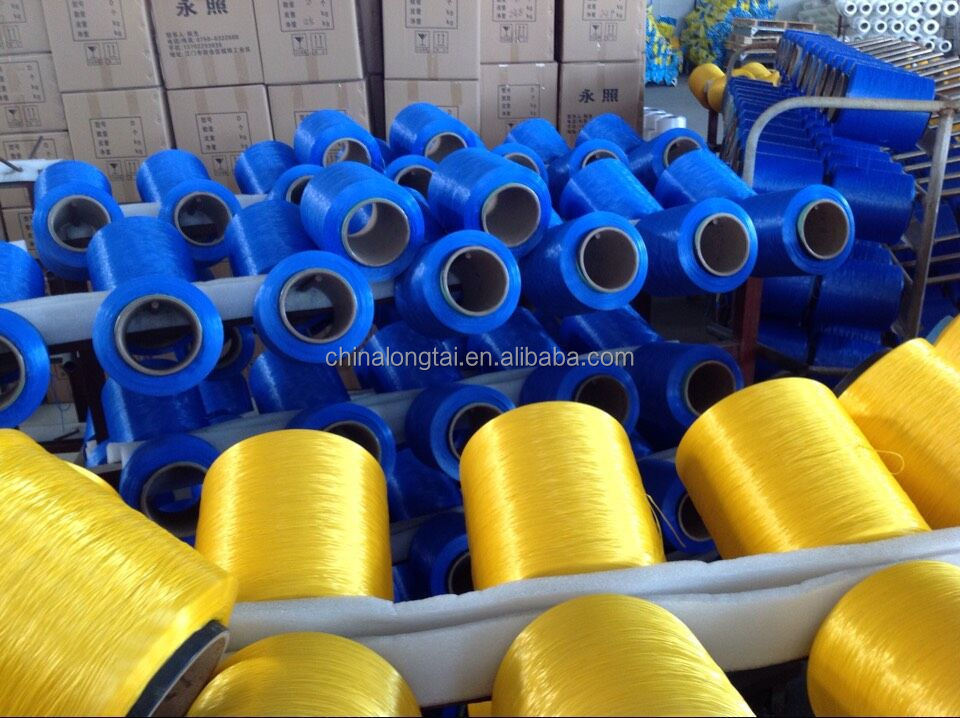

Product Show

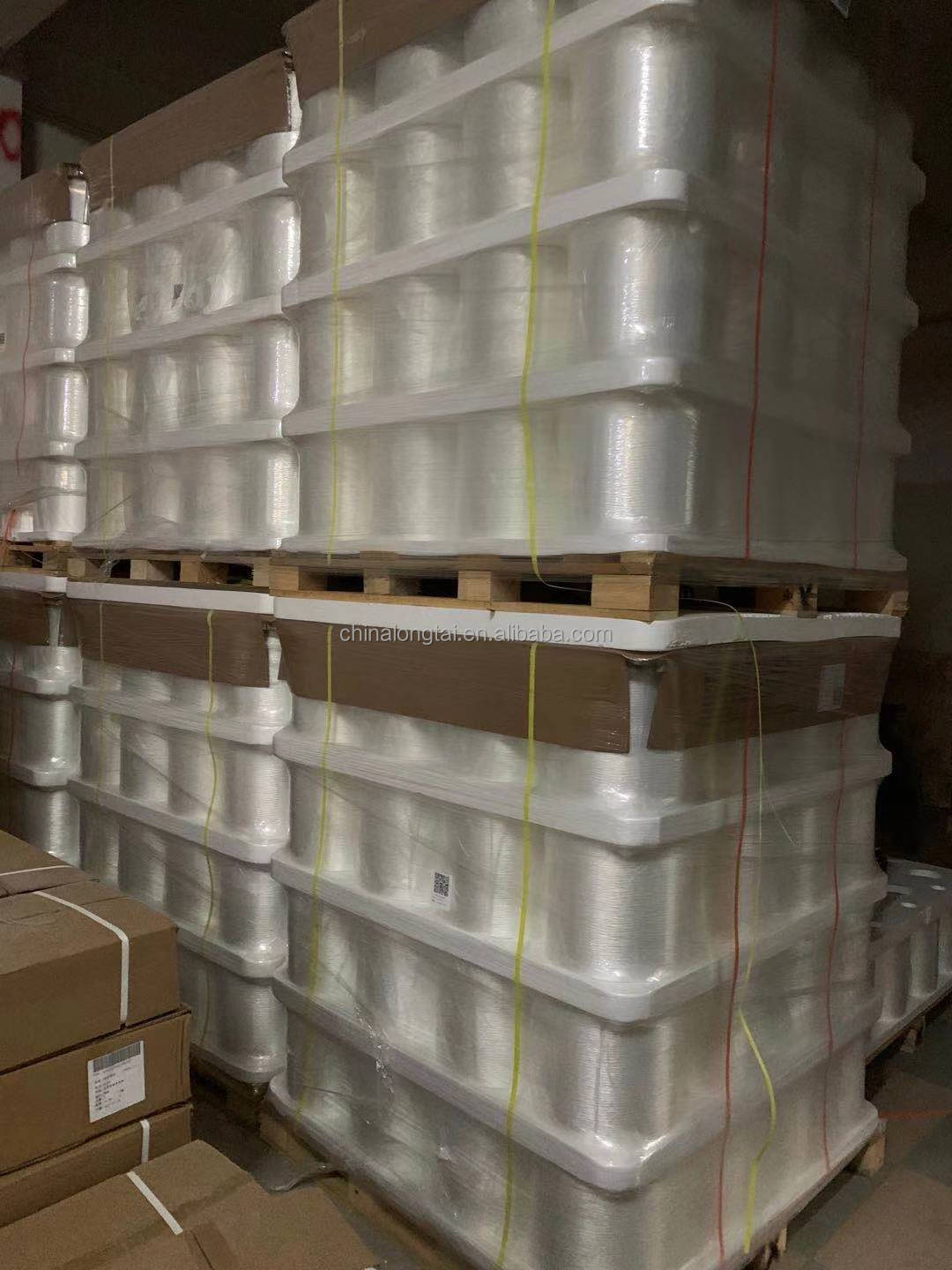

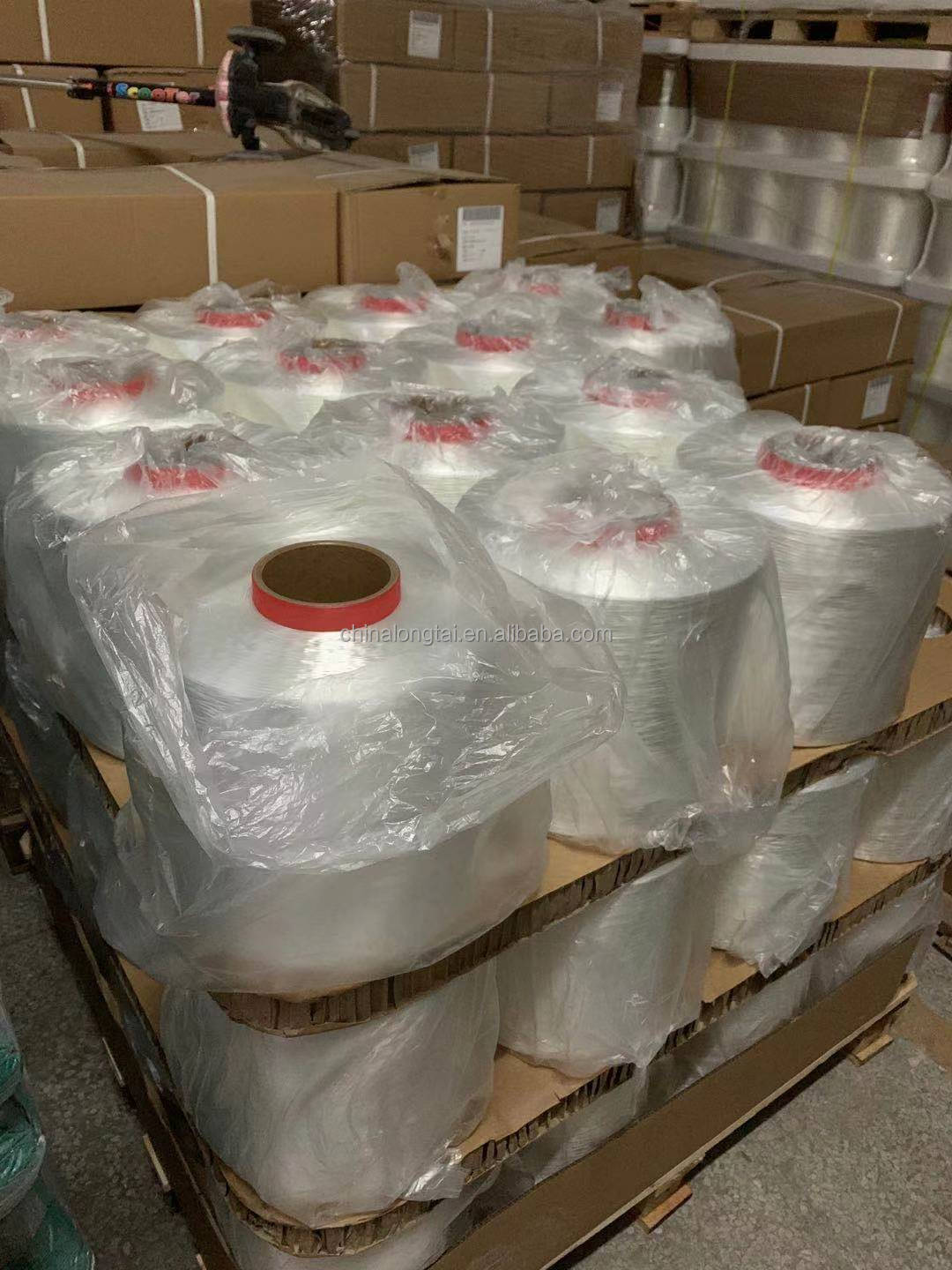

Packaging & Shipping
| Bobbin ID (mm) |
Bobbin Height (mm) |
Yarn OD (mm) |
Yarn Weight (kg) |
Core |
Standard: 95, 128
Optional: 52,76 |
Standard: 170, 185, 200, 215
Optional: 110, 285 |
200-250 |
2-6 |
Paper |
Application
Polyester Binder Yarn is used for binding of SZ-stranded optical fibers at high speed. They are available in Low Shrinkage (LS) and Ultra Low Shrinkage (ULS) versions.
Key Features
- High grade polyester
- Spool may exceed 4000 rpm
- Dual-end versions available
- Ultra low shrinkage version available
- Optimal use in concentric binders
